Nitrogen Pumping Services

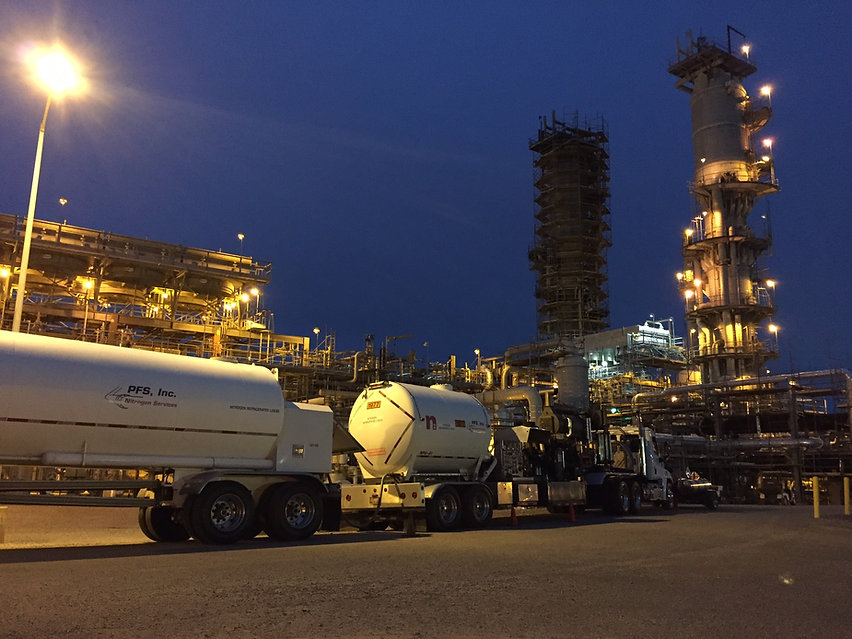

PFS's mobile nitrogen pumping services use modern tandem trailers and bobtail pumper trucks. Operating independently from the diesel prime mover is a high-BTU heater for converting liquid nitrogen to gaseous nitrogen. A 2,000 to 3,000 -gallon vacuum-jacketed tank mounted on the truck or trailer supplies the liquid nitrogen to the cryogenic pumps.



PFS's mobile pumping equipment is capable of delivering gaseous nitrogen up to 8,000 psi, controlled temperatures from 35°F to 400 °F and single unit flow rates up to 740,000 scfh.

Units are outfitted with pressure and high/low temperature shut downs. Certified pressure relief valves custom set prior to each project is mounted on each system we are conducting work on to ensure over-pressurization of your equipment is not possible.



Larger liquid nitrogen requirements are transported to the pumpers by our own transport fleet and liquid can be stored on location in kings or queens depending on the project needs.

PFS has strategic alliances with all the major liquid nitrogen providers.

Industries Served
  • Pipelines

  • Refineries

  • Chemical Plants

  • Vessels & Tanks

  • Storage Facilities

  • Power Generation plants

  • Government Agencies

  • Liquid Terminals

  • Waste Water treatment plants

  • Paper mills

  • Marine

  • Solar Farms

Product Experience
  • Natural Gas

  • Crude Oil

  • Propane

  • Y Grade

  • Ethanol

  • Gasoline

  • Jet Fuels

  • Diesel

  • Ethylene

  • Butadiene

  • Ammonia

  • Acids

  • Catalyst

  • Molten Salt

  • Coal and Coal Pellets

  • Other Refined Products, Chemicals, and Hydrocarbons

Uses
  • Purging, Inerting or Blanketing

  • Inhibitor & Cleaning Pig Runs

  • Gauge Pig Runs

  • ILI Tool Runs

  • Product Displacement

  • Pneumatic Pressure Testing

  • Accelerated Cool-down

  • Accelerated Warm-up

  • Molecular Sieve Changeouts

  • Catalyst Support

  • Freezing

  • Drying

Purge Unit.jpg

Nitrogen Purge "Money Saver" Units

Is a nitrogen pump overkill or bottle rack just not enough volume? On a tight budget and need a more economical solution?



1,000 and 2,000 gallon nitrogen purge trailers, with outputs up to 50 psi at 500 scfm.

STORAGE TANKS - ABOVE OR BELOW GROUND, SALT DOMES, BARGES, RAIL CARS & SHIPS
  • Purging, inerting or blanketing

  • Pressure testing

UTILITIES - CONDUITS
  • Purging, inerting or blanketing

  • Pressure testing
